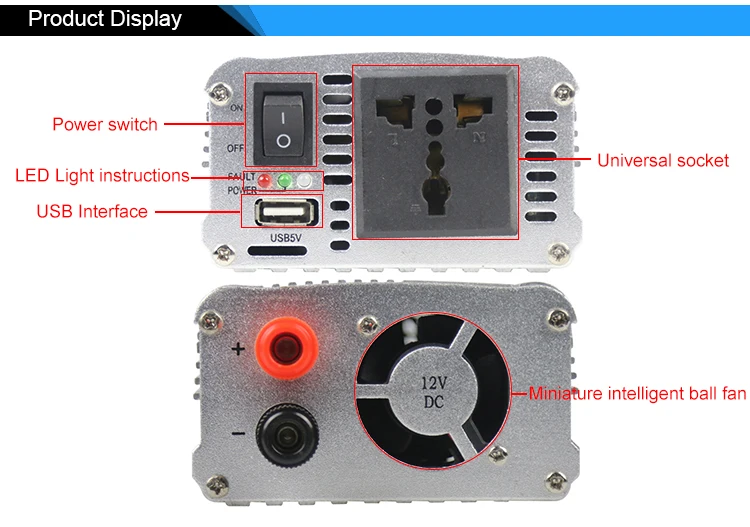

Product Display
Product advantages:
1: 5A 250V multi-function conversion socket, in line with the requirements of multiple national electrical appliances.
2: Multi-purpose socket to meet the functional computer mobile phone use.
3: choose their own 5V 2.1A USB interface More than one mobile phone at the same time leisure, office, entertainment, games and other needs.
4: miniature intelligent ball fan, low noise, high heat dissipation.
5: Car cigarette lighter socket, easy to connect a variety of trucks, cars, large trucks.
6: thick double-layer PCB board, more high temperature, voltage, current resistance, product
Product parameters
| Item No. | SD-GAX500W | |||
| * Max continuous power: | 000W | |||
| * Peak Load Power Rate: | 1000W | |||
| * NO load current draw: | <0.4A | |||
| * Input DC voltage Range: | DC9.7V-15V | |||
| * Output Voltage Range: | AC220V+/-10% | |||
| * Output Frequency Range: | 47-55HZ | |||
| * Max Outer Temperature: | < 65℃ | |||
| * Max Power Efficiency: | > 85% | |||
| * High Voltage Cut Off Level: | 15V+/-1 | |||
| * Low Voltage Alarm Level: | NO | |||
| * Low Voltage Cut Off Level: | DC 9.7V+/-0.3 | |||
| * Overload&Short-circuit Protection | yes | |||
| * Input Voltage: | DC12V | |||
| * Output waveform: | Modified sine wave | |||
| * Cooling: | FAN | |||
| * Product Size: | 126*95*55mm | |||
| * Packing size(40pcs/ctn) | 61*25.5*26cm | |||
| * N.W: | 0.42Kg | |||
| * G.W: | 0.61Kg | |||
